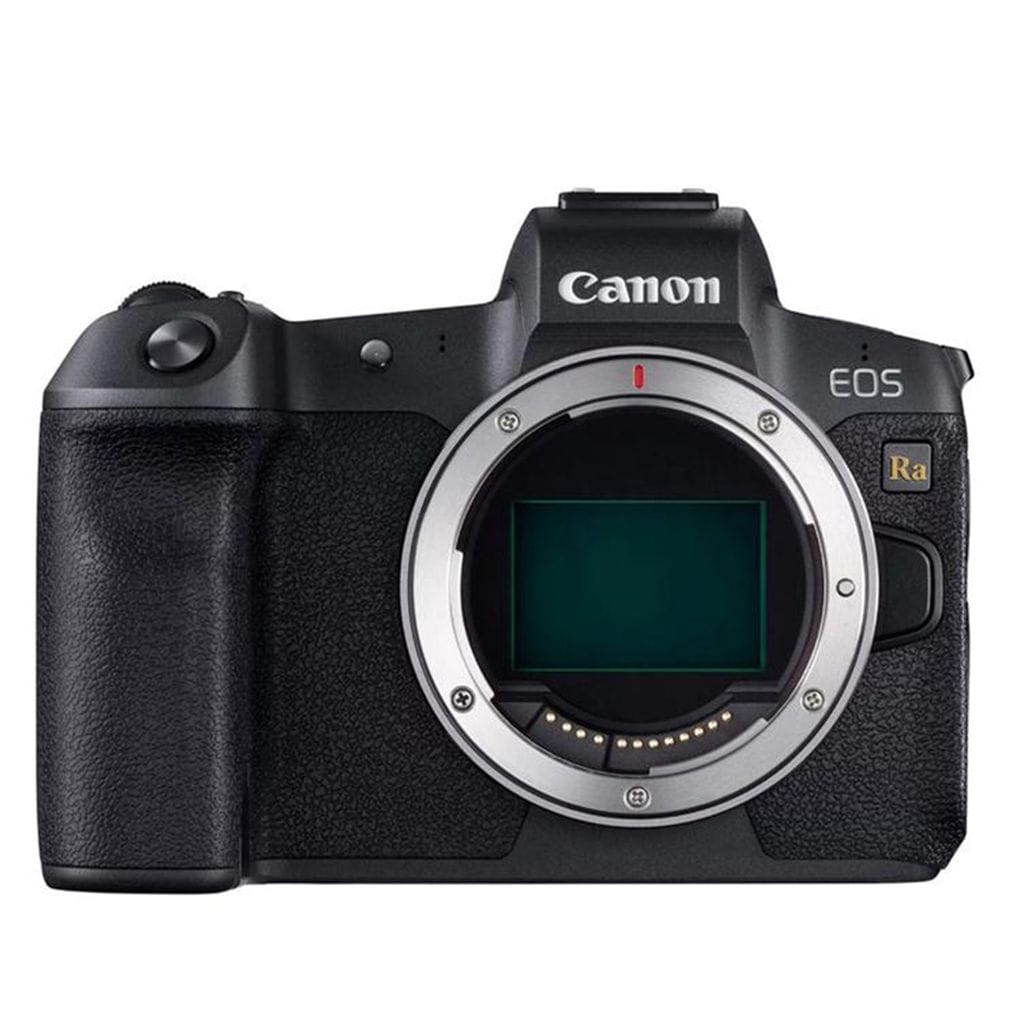

Canon EOS Ra

Announced: 05/11/2018

Canon EOS Ra Sample photos and Specifications - Explore a collection of sample images captured with the Canon EOS Ra.

Check Price on Amazon
Canon EOS Ra

Body type

Body type
SLR-style mirrorless

Sensor

Max resolution
6720 x 4480
Other resolutions
4176 x 2784 (1.6x crop)
Image ratio w:h
1:1, 4:3, 3:2, 16:9
Effective pixels
30 megapixels
Sensor photo detectors
32 megapixels
Sensor size
Full frame (36 x 24 mm)
Sensor type
CMOS


ISO
Auto, 100-40000 (expands to 50-102400)
Boosted ISO (minimum)
50
Boosted ISO (maximum)
102400
White balance presets
6
Custom white balance
Yes
Image stabilization
No
Uncompressed format
RAW
JPEG quality levels
Fine, normal

Optics & Focus

Autofocus
  • Contrast Detect (sensor)
  • Phase Detect
  • Multi-area
  • Center
  • Selective single-point
  • Tracking
  • Single
  • Continuous
  • Touch
  • Face Detection
  • Live View
    Manual focus
    Yes
    Number of focus points
    5655
    Lens mount
    Canon RF
    Focal length multiplier
    1×

    Screen / viewfinder

    Articulated LCD
    Fully articulated
    Screen size
    3.2″
    Screen dots
    2,100,000
    Touch screen
    Yes
    Screen type
    TFT LCD
    Live view
    Yes
    Viewfinder type
    Electronic
    Viewfinder coverage
    100%
    Viewfinder magnification
    0.76×
    Viewfinder resolution
    3,690,000

    Photography features

    Minimum shutter speed
    30 sec
    Maximum shutter speed
    1/8000 sec
    Aperture priority
    Yes
    Shutter priority
    Yes
    Manual exposure mode
    Yes
    Subject / scene modes
    No
    Built-in flash
    No
    External flash
    Yes (via hot shoe)
    Continuous drive
    8.0 fps
    Self-timer
    Yes (2 or 10 secs)
    Metering modes
    • Multi
    • Center-weighted
    • Spot
    • Partial
      Exposure compensation
      ±3 (at 1/3 EV, 1/2 EV steps)
      AE Bracketing
      ±3 (3 frames at 1/3 EV, 1/2 EV steps)

      Videography features

      Format
      MPEG-4, H.264
      Modes
      • 3840 x 2160 @ 30p, H.264
      • 3840 x 2160 @ 30p, H.264
      • 3840 x 2160 @ 24p, H.264
      • 3840 x 2160 @ 24p, H.264
      • 3840 x 2160 @ 23.98p, H.264
      • 3840 x 2160 @ 23.98p, H.264
      • 1920 x 1080 @ 60p, H.264
      • 1920 x 1080 @ 60p, H.264
      • 1920 x 1080 @ 30p, H.264
      • 1920 x 1080 @ 30p, H.264
      • 1920 x 1080 @ 24p, H.264
      • 1920 x 1080 @ 24p, H.264
      • 1920 x 1080 @ 23.98p, H.264
      • 1920 x 1080 @ 23.98p, H.264
      • 1280 x 720 @ 120p, H.264
        Microphone
        Stereo
        Speaker
        Mono

        Storage

        Storage types
        SD card (UHS-II supported)

        Connectivity

        USB
        USB 3.2 Gen 1 (5 GBit/sec)
        USB charging
        Yes (With some chargers)
        HDMI
        Yes (Mini-HDMI)
        Microphone port
        Yes
        Headphone port
        Yes
        Wireless
        Built-In
        Wireless notes
        802.11b/g/n + Bluetooth 4.1 LE
        Remote control
        Yes (via smartphone)

        Physical

        Environmentally sealed
        Yes
        Battery
        Battery Pack
        Battery description
        LP-E6N lithium-ion battery & charger
        Battery Life (CIPA)
        370
        Weight (inc. batteries)
        660 g (1.46 lb / 23.28 oz)
        Dimensions
        136 x 98 x 84 mm (5.35 x 3.86 x 3.31″)

        Other features

        Orientation sensor
        Yes
        GPS
        None
