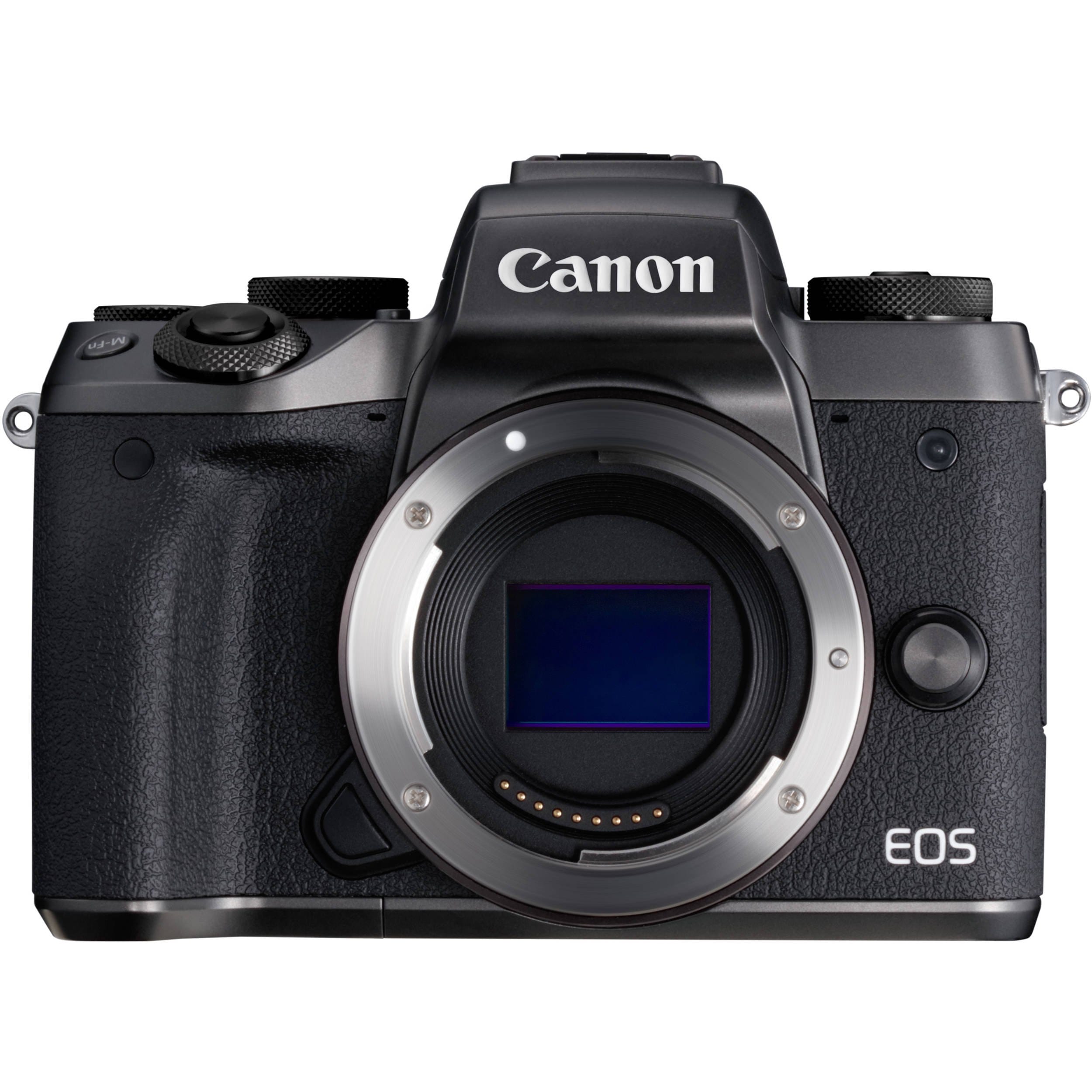

Canon EOS M5

Announced: 15/09/2016

Canon EOS M5 Sample photos and Specifications - Explore a collection of sample images captured with the Canon EOS M5.

Check Price on Amazon

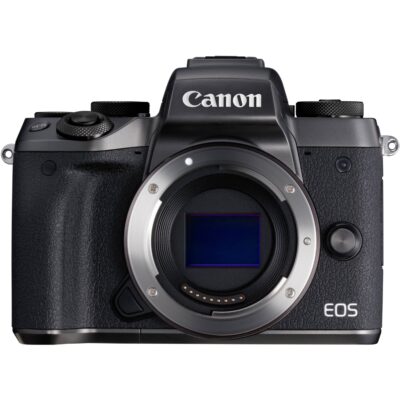

Canon EOS M5

Body type

Body type
SLR-style mirrorless

Sensor

Max resolution
6000 x 4000
Other resolutions
3:2 (6000 x 4000, 3984 x 2656, 2976 x 1984, 2400 x 1600), 16:9 (6000 x 3368, 3984 x 2240, 2976 x 1680, 2400 x 1344), 4:3 (5328 x 4000, 3552 x 2664, 2656 x 1992, 2112 x 1600), 1:1 (4000 x 4000, 2656 x 2656, 1984 x 1984, 1600 x 1600)
Image ratio w:h
1:1, 4:3, 3:2, 16:9
Effective pixels
24 megapixels
Sensor photo detectors
26 megapixels
Sensor size
APS-C (22.3 x 14.9 mm)
Sensor type
CMOS
Processor
Digic 7


ISO
Auto, 100-25600
White balance presets
6
Custom white balance
Yes
Image stabilization
No
Image stabilization notes
5-axis for video only
Uncompressed format
RAW
JPEG quality levels
Fine, standard

Optics & Focus

Autofocus
  • Contrast Detect (sensor)
  • Phase Detect
  • Multi-area
  • Center
  • Selective single-point
  • Tracking
  • Single
  • Continuous
  • Touch
  • Face Detection
  • Live View
    Manual focus
    Yes
    Number of focus points
    49
    Lens mount
    Canon EF-M
    Focal length multiplier
    1.6×

    Screen / viewfinder

    Articulated LCD
    Tilting
    Screen size
    3.2″
    Screen dots
    1,620,000
    Touch screen
    Yes
    Screen type
    TFT LCD
    Live view
    Yes
    Viewfinder type
    Electronic
    Viewfinder coverage
    100%
    Viewfinder resolution
    2,360,000

    Photography features

    Minimum shutter speed
    30 sec
    Maximum shutter speed
    1/4000 sec
    Aperture priority
    Yes
    Shutter priority
    Yes
    Manual exposure mode
    Yes
    Built-in flash
    Yes
    Flash range
    5.00 m (at ISO 100)
    External flash
    Yes
    Continuous drive
    9.0 fps
    Self-timer
    Yes (2 or 10 secs, custom, remote)
    Metering modes
    • Multi
    • Center-weighted
    • Spot
    • Partial
      Exposure compensation
      ±3 (at 1/3 EV steps)
      AE Bracketing
      ±2 (3 frames at 1/3 EV steps)
      WB Bracketing
      No

      Videography features

      Modes
      • 1920 x 1080 @ 60p / 35 Mbps, MP4, H.264, AAC
      • 1920 x 1080 @ 30p / 24 Mbps, MP4, H.264, AAC
      • 1920 x 1080 @ 24p / 24 Mbps, MP4, H.264, AAC
      • 1280 x 720 @ 60p / 16 Mbps, MP4, H.264, AAC
        Microphone
        Stereo
        Speaker
        Mono

        Storage

        Storage types
        SD/SDHC/SDXC card

        Connectivity

        USB
        USB 2.0 (480 Mbit/sec)
        HDMI
        Yes (micro-HDMI)
        Microphone port
        Yes
        Headphone port
        No
        Wireless
        Built-In
        Wireless notes
        802.11/b/g/n with Bluetooth and NFC
        Remote control
        Yes (Wired, wireless, or smartphone)

        Physical

        Environmentally sealed
        No
        Battery
        Battery Pack
        Battery description
        LP-E17 lithium-ion battery & charger
        Battery Life (CIPA)
        295
        Weight (inc. batteries)
        427 g (0.94 lb / 15.06 oz)
        Dimensions
        116 x 89 x 61 mm (4.57 x 3.5 x 2.4″)

        Other features

        Orientation sensor
        Yes
        GPS
        None
