Canon EOS R5

Announced: 09/07/2020

Canon EOS R5 Sample photos and Specifications - Explore a collection of sample images captured with the Canon EOS R5.

Check Price on Amazon

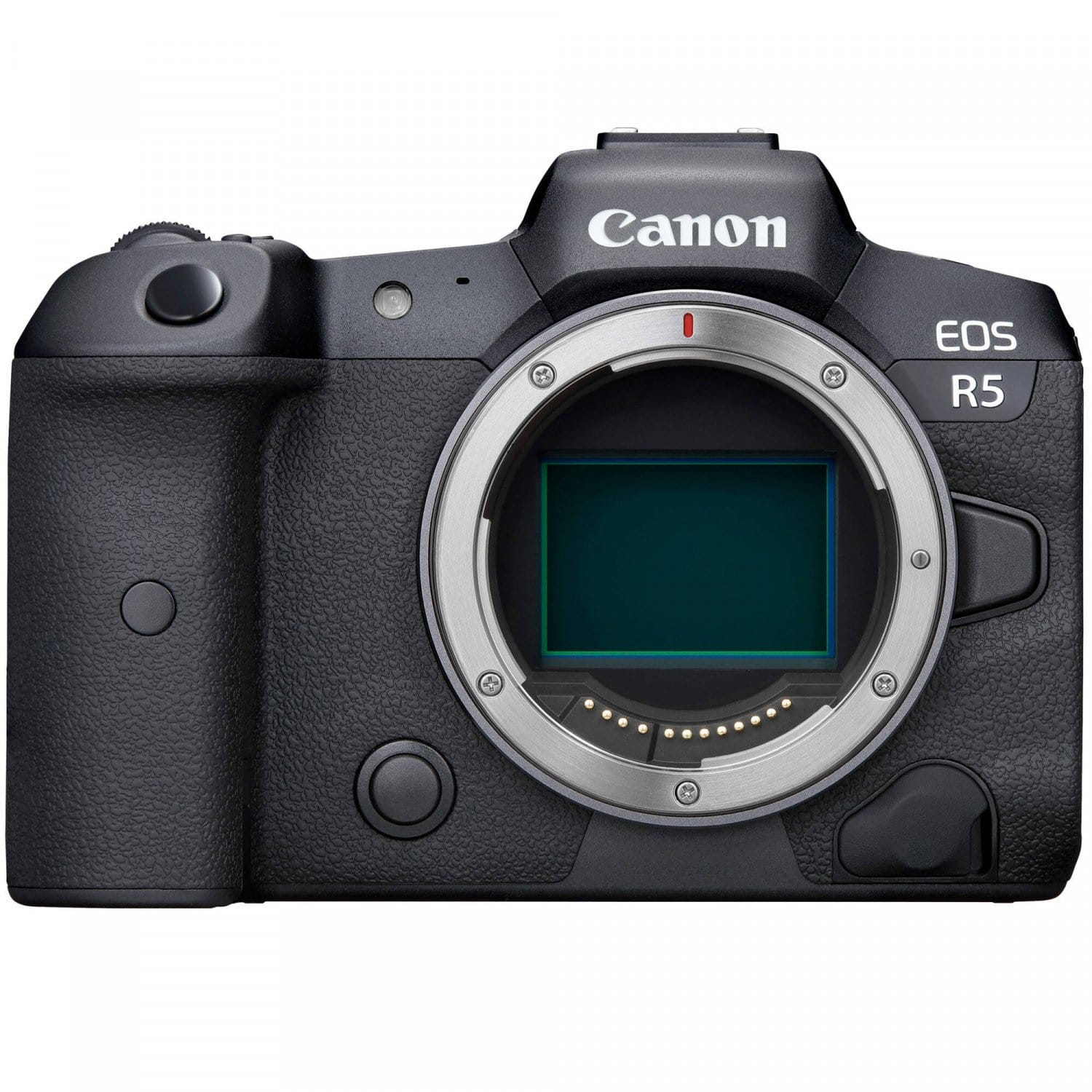

Canon EOS R5

Body type

Body type
SLR-style mirrorless

Sensor

Max resolution
8192 x 5464
Image ratio w:h
1:1, 4:3, 3:2, 16:9
Effective pixels
45 megapixels
Sensor photo detectors
47 megapixels
Sensor size
Full frame (36 x 24 mm)
Sensor type
CMOS
Processor
Digic X


ISO
Yes, 100-51200 (expands to 102400)
Boosted ISO (minimum)
50
Boosted ISO (maximum)
102400
White balance presets
8
Custom white balance
Yes
Image stabilization
Sensor-shift
Image stabilization notes
Works with lens-based IS systems for maximum shake reduction
CIPA image stabilization rating
8 stop(s)
Uncompressed format
RAW
JPEG quality levels
Fine, normal

Optics & Focus

Autofocus
  • Phase Detect
  • Multi-area
  • Center
  • Selective single-point
  • Tracking
  • Single
  • Continuous
  • Touch
  • Face Detection
  • Live View
    Manual focus
    Yes
    Number of focus points
    1053
    Lens mount
    Canon RF
    Focal length multiplier
    1×

    Screen / viewfinder

    Articulated LCD
    Fully articulated
    Screen size
    3.2″
    Screen dots
    2,100,000
    Touch screen
    Yes
    Screen type
    TFT LCD
    Live view
    Yes
    Viewfinder type
    Electronic
    Viewfinder coverage
    100%
    Viewfinder magnification
    0.76×
    Viewfinder resolution
    5,760,000

    Photography features

    Minimum shutter speed
    30 sec
    Maximum shutter speed
    1/8000 sec
    Maximum shutter speed (electronic)
    1/8000 sec
    Aperture priority
    Yes
    Shutter priority
    Yes
    Manual exposure mode
    Yes
    Subject / scene modes
    No
    Built-in flash
    No
    External flash
    Yes (via hot shoe)
    Continuous drive
    20.0 fps
    Self-timer
    Yes
    Metering modes
    • Multi
    • Center-weighted
    • Spot
    • Partial
      Exposure compensation
      ±3 (at 1/3 EV, 1/2 EV steps)
      AE Bracketing
      ±6 (2, 3, 5, 7 frames at 1/3 EV, 1/2 EV steps)
      WB Bracketing
      Yes

      Videography features

      Format
      MPEG-4, H.264, H.265
      Modes
      • 8192 x 4320 @ 30p, H.265
      • 8192 x 4320 @ 24p, H.265
      • 8192 x 4320 @ 23.98p, H.265
      • 7680 x 4320 @ 30p, H.265
      • 7680 x 4320 @ 23.98p, H.265
      • 4096 x 2160 @ 120p, H.265
      • 4096 x 2160 @ 60p, H.265
      • 4096 x 2160 @ 30p, H.265
      • 4096 x 2160 @ 24p, H.265
      • 4096 x 2160 @ 23.98p, H.265
      • 3840 x 2160 @ 120p, H.265
      • 3840 x 2160 @ 60p, H.265
      • 3840 x 2160 @ 30p, H.265
      • 3840 x 2160 @ 24p, H.265
      • 3840 x 2160 @ 23.98p, H.265
        Microphone
        Stereo
        Speaker
        Mono

        Storage

        Storage types
        CFexpress and SD (UHS-II) slots

        Connectivity

        USB
        USB 3.2 Gen 2 (10 GBit/sec)
        USB charging
        Yes
        HDMI
        Yes (micro HDMI)
        Microphone port
        Yes
        Headphone port
        Yes
        Wireless
        Built-In
        Wireless notes
        802.11ac (dual-band) + Bluetooth
        Remote control
        Yes

        Physical

        Environmentally sealed
        Yes
        Battery
        Battery Pack
        Battery description
        LP-E6NH lithium-ion battery & charger
        Battery Life (CIPA)
        320
        Weight (inc. batteries)
        738 g (1.63 lb / 26.03 oz)
        Dimensions
        138 x 98 x 88 mm (5.43 x 3.84 x 3.46″)

        Other features

        Orientation sensor
        Yes
        GPS
        None
