Olympus PEN-F

Announced: 27/01/2016

Olympus PEN-F Sample photos and Specifications - Explore a collection of sample images captured with the Olympus PEN-F.

Check Price on Amazon

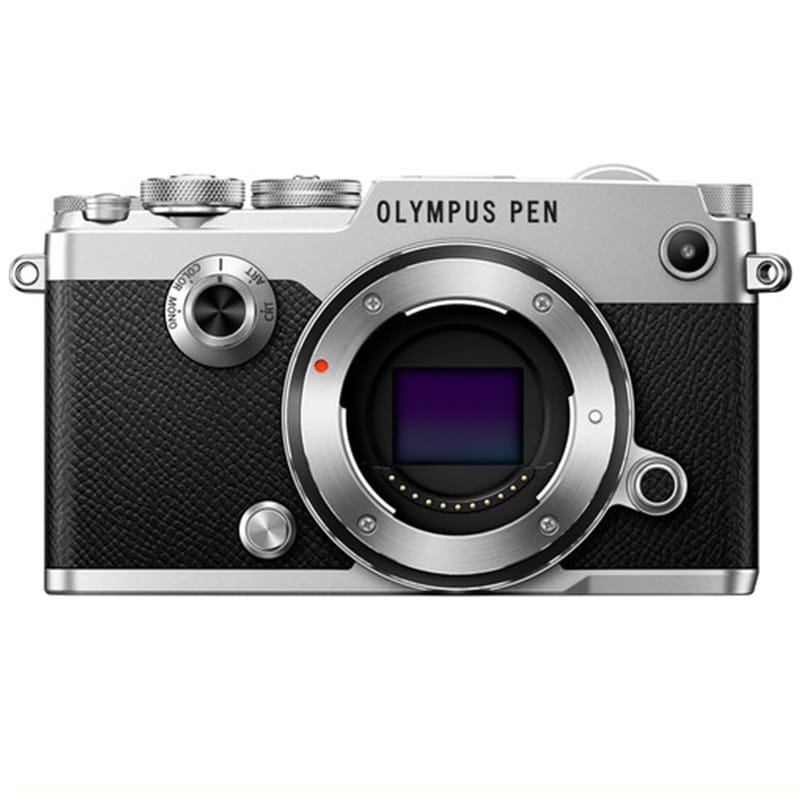

Olympus PEN-F

Body type

Body type
Rangefinder-style mirrorless

Sensor

Image ratio w:h
1:1, 4:3, 3:2, 16:9
Effective pixels
20 megapixels
Sensor photo detectors
22 megapixels
Sensor size
Four Thirds (17.3 x 13 mm)
Sensor type
CMOS
Processor
TruePic VII


Boosted ISO (minimum)
80
White balance presets
7
Custom white balance
Yes (4 slots)
Image stabilization
Sensor-shift
Image stabilization notes
5-axis
Uncompressed format
RAW
JPEG quality levels
Super fine, fine, normal, basic

Optics & Focus

Autofocus
  • Contrast Detect (sensor)
  • Multi-area
  • Center
  • Selective single-point
  • Tracking
  • Single
  • Continuous
  • Touch
  • Face Detection
  • Live View
    Manual focus
    Yes
    Number of focus points
    81
    Lens mount
    Micro Four Thirds
    Focal length multiplier
    2×

    Screen / viewfinder

    Articulated LCD
    Fully articulated
    Screen size
    3″
    Screen dots
    1,037,000
    Touch screen
    Yes
    Screen type
    TFT LCD
    Live view
    Yes
    Viewfinder type
    Electronic
    Viewfinder coverage
    100%
    Viewfinder magnification
    1.23× (0.62× 35mm equiv.)
    Viewfinder resolution
    2,360,000

    Photography features

    Minimum shutter speed
    60 sec
    Maximum shutter speed
    1/8000 sec
    Maximum shutter speed (electronic)
    1/16000 sec
    Aperture priority
    Yes
    Shutter priority
    Yes
    Manual exposure mode
    Yes
    Subject / scene modes
    Yes
    Built-in flash
    No (external flash included)
    External flash
    Yes
    Flash modes
    Flash Auto, Redeye, Fill-in, Flash Off, Red-eye Slow sync (1st curtain), Slow sync (1st curtain), Slow sync (2nd curtain)
    Continuous drive
    10.0 fps
    Self-timer
    Yes (2 or 12 seconds, custom)
    Metering modes
    • Multi
    • Center-weighted
    • Spot
      Exposure compensation
      ±5 (at 1/3 EV steps)
      AE Bracketing
      ±5 (2, 3, 5, 7 frames at 1/3 EV, 2/3 EV, 1 EV steps)
      WB Bracketing
      Yes

      Videography features

      Resolutions
      1920 x 1080 (60p, 50p, 30p, 25p, 24p), 1280 x 720 (60p, 50p, 30p, 25p, 24p)
      Format
      MPEG-4, H.264, Motion JPEG
      Videography notes
      Choice of ALL-I, APB codecs
      Microphone
      Stereo
      Speaker
      Mono

      Storage

      Storage types
      SD/SDHC/SDXC

      Connectivity

      USB
      USB 2.0 (480 Mbit/sec)
      HDMI
      Yes (micro-HDMI)
      Microphone port
      No
      Headphone port
      No
      Wireless
      Built-In
      Wireless notes
      802.11b/g/n
      Remote control
      Yes (wired or via smartphone)

      Physical

      Environmentally sealed
      No
      Battery
      Battery Pack
      Battery description
      BLN-1 lithium-ion battery & charger
      Battery Life (CIPA)
      330
      Weight (inc. batteries)
      427 g (0.94 lb / 15.06 oz)
      Dimensions
      125 x 72 x 37 mm (4.92 x 2.83 x 1.46″)

      Other features

      Orientation sensor
      Yes
      Timelapse recording
      Yes (video)
      GPS
      None
